In critical environments such as aerospace, space, defense, or industry, every component matters. You’re facing constraints in terms of space, performance, and deadlines. In this context, you need simple, reliable solutions—and above all, immediately available.
That’s exactly what Nicomatic’s AMM connector offers: a micro component, ready to use, designed to meet the demands of your systems.
A Design Tailored for Compact Integrations

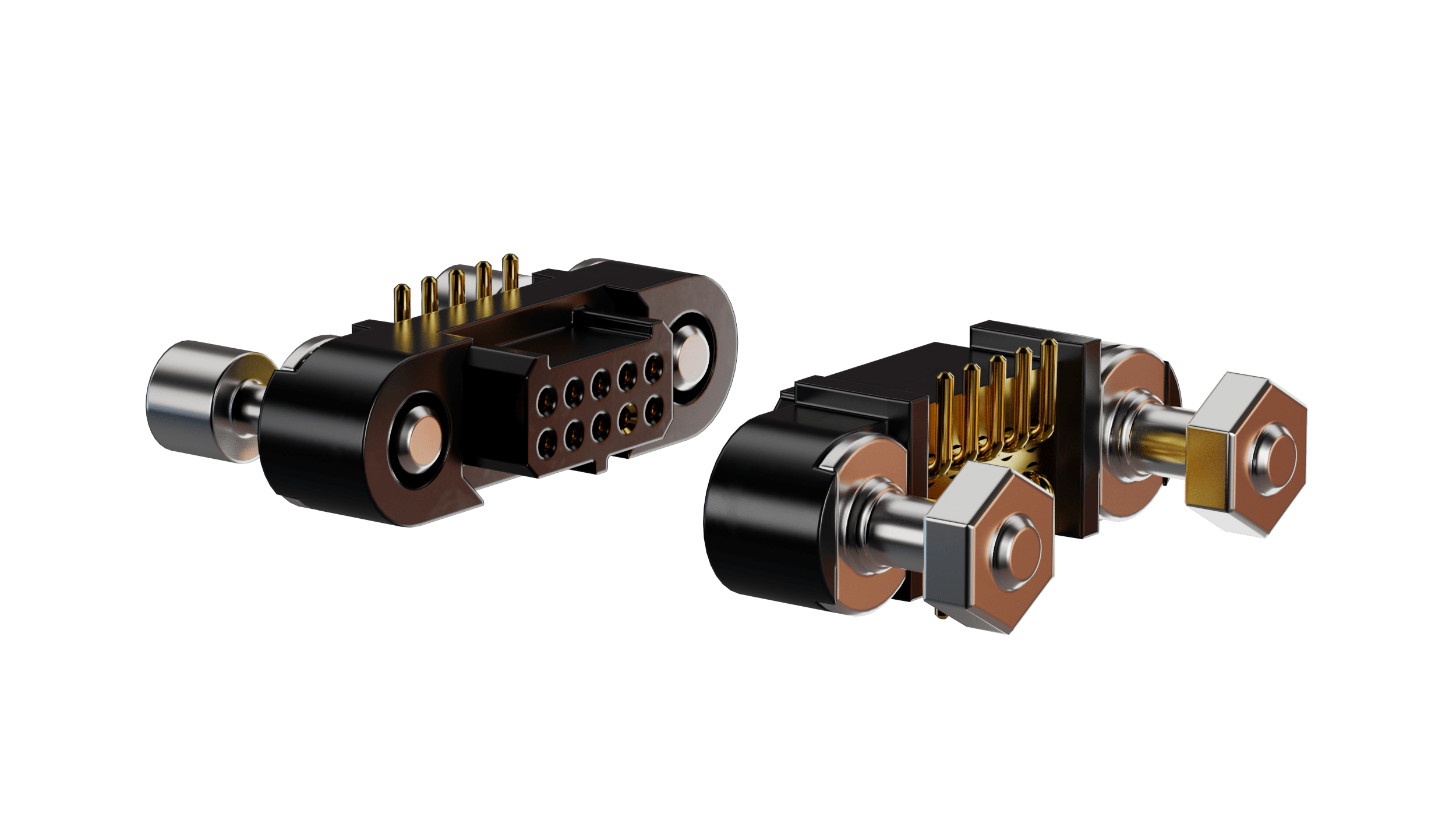

The AMM connector is built on a 1.00 mm pitch, enabling high contact density while minimizing PCB footprint. This format is particularly suited to miniature electronic architectures where every millimeter counts.
- 5 standard configurations available: 6, 10, 20, 34, 50 contacts
- Through-hole or SMT mounting, depending on your technical requirements
- Pre-cabled versions ready for use
- Tape & Reel packaging for automated assembly lines
- Available from stock with a minimum order of just 1 unit
Thanks to immediate availability, AMM connectors are easily integrated into your prototyping, testing, or production phases.
Proven Reliability for Demanding Environments
Compliant with MIL-DTL-83513G and MIL-DTL-55302G standards, the AMM connector is built to deliver stable performance—even under severe mechanical or thermal conditions.
- Operating temperature: -65 °C to +200 °C
- Shock resistance: 100 G
- Vibration resistance: 15 G (10 Hz to 2,000 Hz)
- Current per contact: up to 4.8 A at 25 °C, depending on configuration
A Technical Choice that Optimizes Integration
The reduced 1.00 mm pitch enables:
- Optimized board space
- Shorter critical lengths, beneficial for signal integrity
- Weight reduction, ideal for embedded applications
A Connector Designed to Simplify Your Projects
With the AMM, you get access to a proven technology, available with no lead time, designed to streamline your development phases. Its compactness, reliability, and ease of integration make it a smart choice for engineers seeking efficiency without compromise.
Our team is here to support you in selecting the version that best fits your technical requirements.
