CMM connectors

Micro connectors with a pitch of 2.0 mm

 CMM connectors

CMM Micro Connectors - 2mm Pitch MIL-DTL-55302F

Nicomatic's CMM micro connectors are designed to meet or exceed the electrical and mechanical performance standards of MIL-DTL-55302F and BS-9525-F0033. With a modular design that supports over 20 million configurations, these connectors offer unmatched versatility, reliability, and performance in extreme environments.


Key Features

  • Extreme modularity: Supports signal, power, and coaxial contacts with configurations from 1 to 3 rows, up to 120 pins.
  • Compact 2mm pitch for optimized space efficiency.
  • Various configurations: Board-to-board, board-to-wire, and wire-to-wire interconnects.
  • Space & weight savings: Up to 60% less space and 50% lighter compared to similar rectangular micro connectors.
  • High durability with PPS material: Ensures no humidity absorption, oxygen-free performance, radiation resistance, and solvent resistance.
  • Wide temperature range: Operates between -60°C and +260°C.
  • Exceptional resistance: Withstands vibrations and shocks.
  • Multiple fixing hardware options for secure mounting.
  • Fast lead time: Available from 3-4 weeks, with no minimum order quantity (MOQ).
  • Online design tools: for part number generation and access to 2D/3D drawings.

Product Overview

Nicomatic's CMM micro connector series features a 2mm pitch and is designed for high-reliability applications in harsh environments. It offers:

  • Flexible interconnection solutions: Board-to-board, board-to-wire, and wire-to-wire configurations.
  • Hybrid modular design: Supports mixed layouts combining Low Frequency (LF - over 5Amp), High Frequency (HF - over 11GHz), and High Power (HP - over 40Amp) contacts.
  • Robust and secure design: Integral jacking mechanisms or spring latch locking.

CMM Connector Series

CMM 100 Series:

  • Single-row connector with 2 to 25 signal (LF) contacts.
  • Spring latch (Latch) locking mechanism.

CMM 200 Series:

  • Dual-row connector with 4 to 50 signal (LF) contacts.
  • Spring latch (Latch) locking mechanism.

CMM 220 Series:

  • Dual-row modular connector supporting mixed contact types.
  • Supports up to 60 LF contacts or 15 HF/HP contacts.
  • Screw-locking mechanism.
  • Compatible with flexible wiring and CrimpFlex FFC flat cable.

CMM 320 Series:

  • Three-row modular connector with up to 120 LF contacts or 20 HF/HP contacts.
  • Screw-locking mechanism.

CMM 340 Series:

  • Three-row hybrid connector with up to 64 HF/HP contacts.
  • Supports high-frequency coaxial (HF) contacts up to 1.5GHz and high-current (HP) contacts up to 10A.
  • Screw-locking mechanism.

Performance Advantages

  • Space-efficient design: 40% smaller surface area and 60% volume reduction compared to traditional solutions.
  • Weight reduction: 20-50% lighter than equivalent connectors.
  • Cost-effective: Custom assemblies built from standard components.
  • Industry-proven: Trusted for onboard electronic systems.
  • Traceability: Fully EN9100:2003 compliant.
  • Short lead times: Express service available within one week.
  • Free online resources: Access to My Nicomatic for 2D/3D drawings, automatic part numbering, and technical support.

Applications

CMM connectors are widely used in aerospace, avionics, defense, instrumentation, control, and transportation applications, including:

  • In-Flight Entertainment Systems (IFES)
  • Head-Up Displays (HUDs)
  • Flight Controls
  • FADEC Units
  • Radars & Missiles
  • Electro-Optical Sighting Systems
  • Satellites
  • Mobile Radios & Power Supplies
  • UAVs & Engine Controls
  • Medical and Telecom Equipment

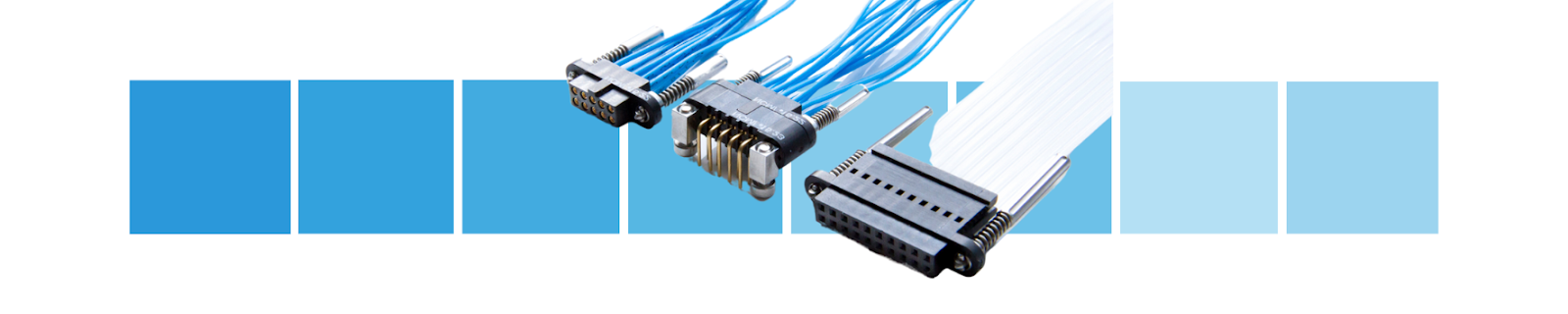

hero

Technical Specifications

Materials (LF contacts)

  • Insulator: PPS (Polyphenylene Sulfide), UL 94-V0
  • Radiation-resistant
  • No humidity absorption
  • Contacts: Copper alloy with Ni/Au plating.
  • Fixing hardware: Stainless steel jackscrew; beryllium copper latch (CMM 100/200 series).

Electrical Performance

  • Current rating: 5A max @ 25°C, 2.2A max @ 85°C.
  • Voltage: 800V DC working voltage, 1200V DC proof voltage.
  • Contact resistance: ≤ 10mΩ.
  • Insulation resistance: ≥ 1000MΩ.

Mechanical & Environmental Performance

  • Durability: Up to 2500 mating cycles.
  • Contact retention: 10N min.
  • Operating temperature: -60°C to +260°C.
  • Vibration resistance: 0.75mm, 10g RMS, 6-hour random sinusoidal test.
  • Shock resistance: 100g for 6ms (MIL-DTL-55302F Test Condition III).
  • Solvent resistance: Compliant with industry standards.

HF/HP Contacts

  • Spring-loaded design: BeCu gold-plated for superior performance.
  • Insulator: PTFE (HF) for high-frequency applications.
  • Mechanical Durability: Up to 500 cycles.
  • Frequency Range:
  • Series 30: 20GHz, up to 35A.
  • Series 22: 6GHz, up to 20A.
  • Dielectric Voltage:
  • Sea Level: 1500VRMS (Series 22) / 1000VRMS (Series 30).
  • High Altitude (70,000ft): 900VRMS (Series 22) / 700VRMS (Series 30).

Conclusion

Nicomatic's CMM micro connectors provide a superior interconnection solution with high modularity, rugged design, and exceptional reliability under extreme conditions. With over 20 million configurations available and industry-leading lead times, these connectors are the perfect choice for aerospace, defense, and high-reliability electronic applications

CMM Catalog

Contact us

Our address:
HaLahai 2, Rishon LeZion

Phone:
073-253-0770

Email:
israel@nicomatic.com

Which fixture is suitable for equipment that requires quick connection and disconnection

Connectors and wiring solutions

Questions / Answers

What types of power connectors does Nicomatic offer?

Nicomatic offers a wide variety of power connectors, including high-density connectors between the contacts that are resistant to harsh environmental conditions.

How to choose the Power connector for my application?

The choice of a power connector depends on several parameters, including electric current, voltage, the number of contacts and the work environment, the type of application and more. We recommend talking to our experts for professional advice.

What standards do the Nicomatic power connectors meet?

Our power connectors comply with leading international standards such as ISO 9001, and MIL, DTL and RoHS standards - work standard series. To obtain the certification, you can contact us or download from the website.

What is the average shelf life of a Nicomatic power connector?

The lifespan of our power connectors depends on the type of connector and the conditions of use. But most connectors are made to withstand thousands of plugging and unplugging cycles. We would be happy to discuss further details and provide recommendations based on your application.

Can you customize power connectors for certain needs?

Yes, Nicomatic are experts in customization, according to the customer's needs, it is possible to use different materials, different assemblies and create connectors that will be adjusted and meet your unique requirements. Please contact our team to discuss your needs and receive a quote.

What are the normal delivery times for your power connectors?

Our delivery times depend on several parameters, including the type of connector, the order quantity and the available stock. For standard items, the delivery times will be about four weeks, in urgent cases you can get fast deliveries.

How can I get a quote for a large quantity of power connectors?

To receive a quote, please contact us through our website or contact our team directly and we will be happy to provide an offer according to your requirements.

What payment methods are accepted for purchasing power connectors?

You can pay by bank transfer or credit cards. Please contact us for more information on payment options.

What is a single contact (signal)?

Signal contacts, defined for "low" currents of milliamperes up to 3 amps

What is HF contact?

HF contactor in its full name High Frequency contactor is a coaxial contactor that contains a central contact that conducts the signal (signal) isolated and above it a shell of shielding (Braid) K) for EMI/RFI protection.

What is the HP touch?

Contact HP or in its full name High Power, is intended for transferring currents of 3 amperes and up to 20 amperes, the interval between one HP contact and another will be 4 mm.

What is EMI?

Electromagnetic Interference

What is RFI?

Radio Frequency Interference

What is EMI/RFI protection?

While a current is passing through the contact or the cable, a magnetic field is created, the magnetic field that is created can interfere with the electrical data that you want to transmit, and in order to prevent this interference, the cable is wrapped in a shield, with the central conductor electrically isolated from the shield.

What is COAX contact?

A coax contact is intended in communications for transmitting signals at high frequencies, it contains a central contact that conducts the signal (signal) isolated and above it a shell of shielding (Braid) to prevent EMI/RFI interference. EMI - Electromagnetic Interference RFI - Radio Frequency Interference

How do you choose a connector according to frequency (HZ) and impedance (Impedance-Ω)?

Nicomatic offers connectors for transmitting high frequencies from 1.5GHz to 11GHz depending on the cable. For the purpose of the characterization, it is necessary to define whether the frequency to be transmitted is up to 6GHz or beyond in order to choose the appropriate cable, in case you are not sure about the frequency, it is recommended to choose the appropriate cable for a higher frequency.

When to choose a plastic connector and when to choose a metal connector?

The choice of the connector material depends on the application, plastic connectors must be used for connectors inside the box and connectors that interface outside the box and need better protection from the electrically noisy environment, we will use metal connectors, in more extreme environments, we can add an additional layer of protection to the connector called BackShell (back accessory).

What is the advantage of SMT contacts (Surface Mount Technology) compared to intrusive contacts on the PCB?

In penetrating contacts (Thru-Hole), the connector is prevented from placing components on the other side of the PCB board, while in surface mounting the bottom side of the PCB is intended for independent editing and placing additional components.

Golden advice for designing connectors on a PCB board

Depending on the required task and especially the required mechanical size, it is advisable to use connectors that have a small pitch between the contacts, thus making it possible to design a compact and lightweight package, something that is very much required in optical systems and UAVs (unmanned aerial vehicles).
