Based on the propagation of a beam with the help of a lens

fiber optic connector

vita standards (LIFE-VMEbus Iinternational Tthey work Association) define interfaces, connectors, communication protocols and physical characteristics necessary to integrate electronic modules in large systems.

VITA66 standard connectors are intended for use in backplane assemblies (motherboard). The VITA66 standard defines a compact optical connector that enables the connection of optical modules to electronic cards.

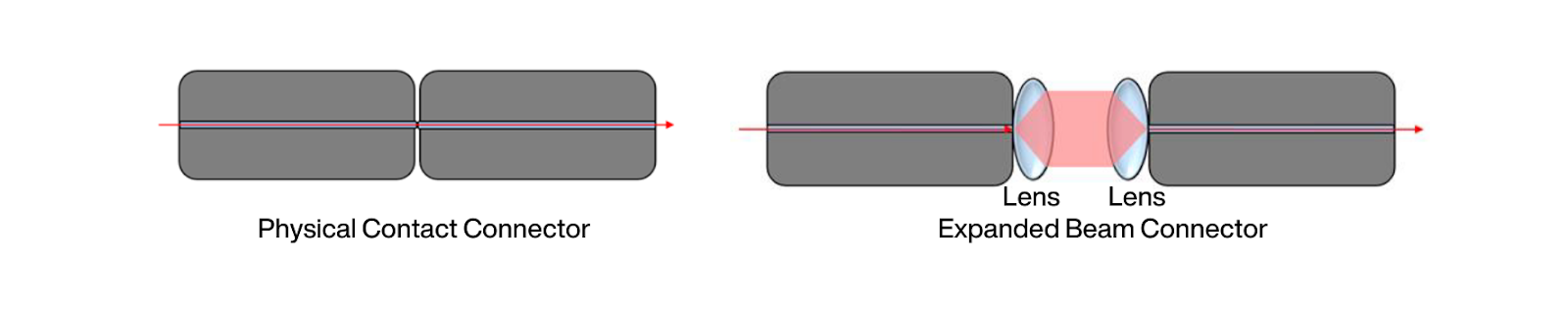

The VITA 66.1 and VITA 66.4 standards are intended for the MT formula (Multi-fiber Termination) standard with physical contact between the optical fibers. Nicomatic's version of the VITA 66.1 and 66.4 VITA incorporates an MT core fiber with expanded beam technology, using a prism lens that opens and focuses the optical signal passing through the fiber, in this way more precision is created in connecting the connectors without compromising the integrity of the information transmission.

Data transmission in fiber optic technology helps data move at a faster rate and get better performance. One of the most important advantages is that information transmitted by optical fibers cannot be disrupted.

hero

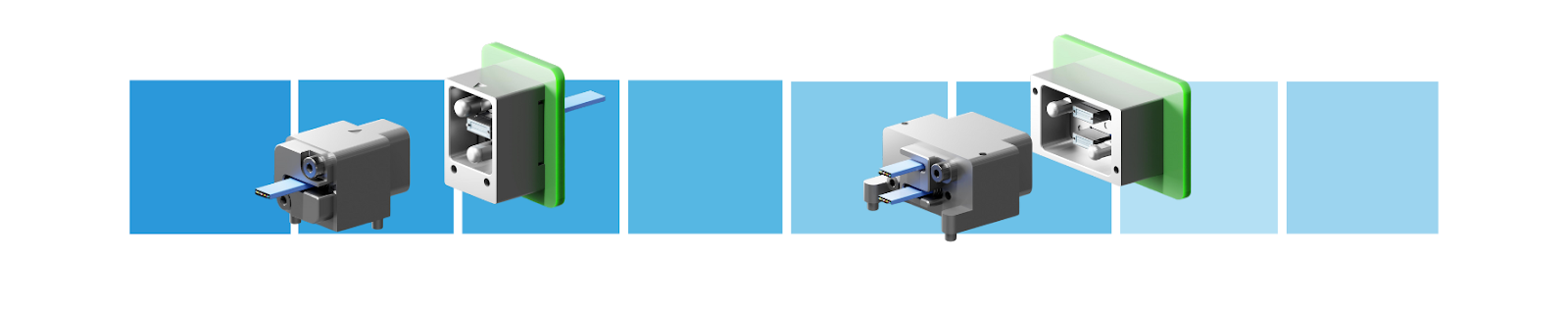

The haptic connectors come in five configurations:

Vita 66.1 - two MT proles with an expanded beam

Vita 66.1- two MT proles with physical contact

 Vita 66.4- MT roll in expanded beam (expanded beam)

 Vita 66.4- MT prolet in physical contact

Vita 66.4 double - two MT proles with an expanded beam

The main functions and benefits for this fiber optic connector:

  • Two standards are available: VITA 66.1 contains two cores and VITA 66.4 contains one core.
  • Precise mechanical adjustment of the core within the structure.
  • Optimized for VPX configurations.
  • Compression of the core at 9.8 newtons.
  • With expanded beam technology or a physical connection of the core in multi-fiber, high-speed data transmission is achieved.
  • One ferrule contains between 12 and 72 optical fibers
  • Optical braids are adapted to the customer's needs.
  • High bandwidth
  • Small dimensions and light
  • Prevents EMI interference / EMI isolation

For the catalog click here

The modules have been designed to be tough and reliable, making them ideal for harsh environments.

Performance is high, with fast data rates and minimal losses.

High density: supports up to 24 optical channels per connector (48 with 2 MT cores)

The VITA 66 standard is compatible with the VITA 65 standard, and provides seamless integration with other VPX components.

Nicomatic's VITA66 optical backplane connectors are ideal for military and space applications.

hero


Contact us

Our address:
HaLahai 2, Rishon LeZion

Phone:
073-253-0770

Email:
israel@nicomatic.com

Vita66 fiber optic connector

" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen>

Connectors and wiring solutions

Questions / Answers

What types of power connectors does Nicomatic offer?

Nicomatic offers a wide variety of power connectors, including high-density connectors between the contacts that are resistant to harsh environmental conditions.

How to choose the Power connector for my application?

The choice of a power connector depends on several parameters, including electric current, voltage, the number of contacts and the work environment, the type of application and more. We recommend talking to our experts for professional advice.

What standards do the Nicomatic power connectors meet?

Our power connectors comply with leading international standards such as ISO 9001, and MIL, DTL and RoHS standards - work standard series. To obtain the certification, you can contact us or download from the website.

What is the average shelf life of a Nicomatic power connector?

The lifespan of our power connectors depends on the type of connector and the conditions of use. But most connectors are made to withstand thousands of plugging and unplugging cycles. We would be happy to discuss further details and provide recommendations based on your application.

Can you customize power connectors for certain needs?

Yes, Nicomatic are experts in customization, according to the customer's needs, it is possible to use different materials, different assemblies and create connectors that will be adjusted and meet your unique requirements. Please contact our team to discuss your needs and receive a quote.

What are the normal delivery times for your power connectors?

Our delivery times depend on several parameters, including the type of connector, the order quantity and the available stock. For standard items, the delivery times will be about four weeks, in urgent cases you can get fast deliveries.

How can I get a quote for a large quantity of power connectors?

To receive a quote, please contact us through our website or contact our team directly and we will be happy to provide an offer according to your requirements.

What payment methods are accepted for purchasing power connectors?

You can pay by bank transfer or credit cards. Please contact us for more information on payment options.

What is a single contact (signal)?

Signal contacts, defined for "low" currents of milliamperes up to 3 amps

What is HF contact?

HF contactor in its full name High Frequency contactor is a coaxial contactor that contains a central contact that conducts the signal (signal) isolated and above it a shell of shielding (Braid) K) for EMI/RFI protection.

What is the HP touch?

Contact HP or in its full name High Power, is intended for transferring currents of 3 amperes and up to 20 amperes, the interval between one HP contact and another will be 4 mm.

What is EMI?

Electromagnetic Interference

What is RFI?

Radio Frequency Interference

What is EMI/RFI protection?

While a current is passing through the contact or the cable, a magnetic field is created, the magnetic field that is created can interfere with the electrical data that you want to transmit, and in order to prevent this interference, the cable is wrapped in a shield, with the central conductor electrically isolated from the shield.

What is COAX contact?

A coax contact is intended in communications for transmitting signals at high frequencies, it contains a central contact that conducts the signal (signal) isolated and above it a shell of shielding (Braid) to prevent EMI/RFI interference. EMI - Electromagnetic Interference RFI - Radio Frequency Interference

How do you choose a connector according to frequency (HZ) and impedance (Impedance-Ω)?

Nicomatic offers connectors for transmitting high frequencies from 1.5GHz to 11GHz depending on the cable. For the purpose of the characterization, it is necessary to define whether the frequency to be transmitted is up to 6GHz or beyond in order to choose the appropriate cable, in case you are not sure about the frequency, it is recommended to choose the appropriate cable for a higher frequency.

When to choose a plastic connector and when to choose a metal connector?

The choice of the connector material depends on the application, plastic connectors must be used for connectors inside the box and connectors that interface outside the box and need better protection from the electrically noisy environment, we will use metal connectors, in more extreme environments, we can add an additional layer of protection to the connector called BackShell (back accessory).

What is the advantage of SMT contacts (Surface Mount Technology) compared to intrusive contacts on the PCB?

In penetrating contacts (Thru-Hole), the connector is prevented from placing components on the other side of the PCB board, while in surface mounting the bottom side of the PCB is intended for independent editing and placing additional components.

Golden advice for designing connectors on a PCB board

Depending on the required task and especially the required mechanical size, it is advisable to use connectors that have a small pitch between the contacts, thus making it possible to design a compact and lightweight package, something that is very much required in optical systems and UAVs (unmanned aerial vehicles).
