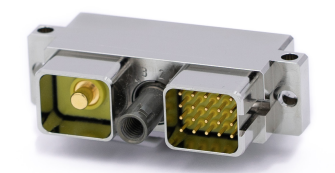

Connector with OPTIMUS seal

Robust modular Optimus connector with sealing

Connector with OPTIMUS seal

Modular. Sealed. Compliant with EN4165.

OPTIMUS is Nicomatic’s rugged, modular connector solution designed for the toughest environments. Fully compliant with the EN4165 standard, the OPTIMUS series offers flexible, high-density configurations that are lighter and more compact than traditional circular connectors like D38999.

This innovative solution is engineered for reliability, modularity, and simplicity—making it ideal for aerospace, military, railway, and other high-performance applications.

 Key Benefits

  • Sealed design for high resistance to environmental factors
  • Fully modular: stackable and customizable layout
  • Intermateable with existing EN4165 systems
  • Mixed contact types: signal, high current, and high-speed
  • Space-saving: up to 50% smaller than round connectors
  • Tool-less mate/unmate for fast installation and testing
  • Front panel & backplane mounting options

To build a SKU, get a drawing and a model, click here (one-time registration to the website is required)

For the catalog click here

hero

Built for Harsh Environments

Designed with a robust metallic frame, Optimus modules are sealed using a one-shot injected silicone process that ensures:

  • Interfacial sealing between mated modules
  • Peripheral sealing between module and shell
  • Rear grommet sealing to prevent liquid ingress from cable side

These features provide superior EMI protection, vibration resistance, and environmental sealing, making Optimus a perfect fit for mission-critical applications.

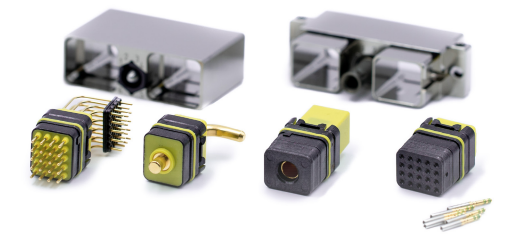

 Modular Contact Options

With a nearly unlimited range of contact combinations, Optimus modules can be tailored to meet exact needs, including mixed signal and power layouts.

Available module configurations include:

  • 01-08 : 1 contact size 8
  • 04-12 : 4 contacts size 12
  • 08-16 : 8 contacts size 16
  • 12-20 : 12 contacts size 20
  • 20-22 : 20 contacts size 22
  • 23-30 : 30 contacts size 23
  • 99-01 : 5x size 22 + 6x size 16
  • 99-10 : 8x size 20 + 2x size 16
  • 01Q28 : Quadrax module for high-speed data



Shell Options

2 or 4 cavity shells available in:

  • Aluminium 6061 – Ideal for aerospace durability
  • Composite – Lightweight alternative

 Surface treatments:

  • Black Nickel (96h salt spray)
  • Olive Green Cadmium (500h salt spray)

Mounting Flexibility

  • PCB Adapted: Direct motherboard connection
  • Rack & Panel: Robust, blind-mating capabilities
  • Easy Maintenance: Modules and contacts are removable
  • Backshell variety: Adapt to cable management needs
  • Compatible with EN4165 receptacles



Nicomatic also provides a Plug + Nut Kit designed for fast and easy integration into any standard EN4165 panel solution—no tools required, saving time during testing or frequent connection/disconnection cycles.



Standards & Certification

  • EN4165 Qualified & Certified
  •  Developed in accordance with ARINC 809 (civil aviation standard)
  •  AS/EN 9100 aerospace quality compliant



Applications

  • Aerospace & avionics systems
  • Defense communication and control units
  • Harsh industrial environments
  •  Electronic enclosures and drawers
  •  Embedded systems in space-constrained modules



Create Your Connector

Want to configure your Optimus connector with the exact modules and contact types you need?

👉 Click here to build your SKU and download 2D/3D models (One-time registration required)

 A Future-Proof Choice

By adopting the Optimus EN4165-based connector, you’re investing in a standardized, modular solution with the versatility to evolve with your designs—no compromises on space, weight, or reliability.

 Choose OPTIMUS. Be ready for what’s next.

Contact us

Our address:
HaLahai 2, Rishon LeZion

Phone:
073-253-0770

Email:
israel@nicomatic.com

Nicometic group applications in space

Connectors and wiring solutions

Questions / Answers

What types of power connectors does Nicomatic offer?

Nicomatic offers a wide variety of power connectors, including high-density connectors between the contacts that are resistant to harsh environmental conditions.

How to choose the Power connector for my application?

The choice of a power connector depends on several parameters, including electric current, voltage, the number of contacts and the work environment, the type of application and more. We recommend talking to our experts for professional advice.

What standards do the Nicomatic power connectors meet?

Our power connectors comply with leading international standards such as ISO 9001, and MIL, DTL and RoHS standards - work standard series. To obtain the certification, you can contact us or download from the website.

What is the average shelf life of a Nicomatic power connector?

The lifespan of our power connectors depends on the type of connector and the conditions of use. But most connectors are made to withstand thousands of plugging and unplugging cycles. We would be happy to discuss further details and provide recommendations based on your application.

Can you customize power connectors for certain needs?

Yes, Nicomatic are experts in customization, according to the customer's needs, it is possible to use different materials, different assemblies and create connectors that will be adjusted and meet your unique requirements. Please contact our team to discuss your needs and receive a quote.

What are the normal delivery times for your power connectors?

Our delivery times depend on several parameters, including the type of connector, the order quantity and the available stock. For standard items, the delivery times will be about four weeks, in urgent cases you can get fast deliveries.

How can I get a quote for a large quantity of power connectors?

To receive a quote, please contact us through our website or contact our team directly and we will be happy to provide an offer according to your requirements.

What payment methods are accepted for purchasing power connectors?

You can pay by bank transfer or credit cards. Please contact us for more information on payment options.

What is a single contact (signal)?

Signal contacts, defined for "low" currents of milliamperes up to 3 amps

What is HF contact?

HF contactor in its full name High Frequency contactor is a coaxial contactor that contains a central contact that conducts the signal (signal) isolated and above it a shell of shielding (Braid) K) for EMI/RFI protection.

What is the HP touch?

Contact HP or in its full name High Power, is intended for transferring currents of 3 amperes and up to 20 amperes, the interval between one HP contact and another will be 4 mm.

What is EMI?

Electromagnetic Interference

What is RFI?

Radio Frequency Interference

What is EMI/RFI protection?

While a current is passing through the contact or the cable, a magnetic field is created, the magnetic field that is created can interfere with the electrical data that you want to transmit, and in order to prevent this interference, the cable is wrapped in a shield, with the central conductor electrically isolated from the shield.

What is COAX contact?

A coax contact is intended in communications for transmitting signals at high frequencies, it contains a central contact that conducts the signal (signal) isolated and above it a shell of shielding (Braid) to prevent EMI/RFI interference. EMI - Electromagnetic Interference RFI - Radio Frequency Interference

How do you choose a connector according to frequency (HZ) and impedance (Impedance-Ω)?

Nicomatic offers connectors for transmitting high frequencies from 1.5GHz to 11GHz depending on the cable. For the purpose of the characterization, it is necessary to define whether the frequency to be transmitted is up to 6GHz or beyond in order to choose the appropriate cable, in case you are not sure about the frequency, it is recommended to choose the appropriate cable for a higher frequency.

When to choose a plastic connector and when to choose a metal connector?

The choice of the connector material depends on the application, plastic connectors must be used for connectors inside the box and connectors that interface outside the box and need better protection from the electrically noisy environment, we will use metal connectors, in more extreme environments, we can add an additional layer of protection to the connector called BackShell (back accessory).

What is the advantage of SMT contacts (Surface Mount Technology) compared to intrusive contacts on the PCB?

In penetrating contacts (Thru-Hole), the connector is prevented from placing components on the other side of the PCB board, while in surface mounting the bottom side of the PCB is intended for independent editing and placing additional components.

Golden advice for designing connectors on a PCB board

Depending on the required task and especially the required mechanical size, it is advisable to use connectors that have a small pitch between the contacts, thus making it possible to design a compact and lightweight package, something that is very much required in optical systems and UAVs (unmanned aerial vehicles).
