A connector with contacts signal only (3-5 amps) can contain from 2 contacts up to 120 contacts.

A connector containing only high current contacts 20-40 amps, can contain from 2 contacts to 15 contacts in the CMM220 series.

A connector containing only Coax contacts  Can contain from 2 contacts to 15 contacts in the CMM220 series.

The main advantages of CMM connectors:

•  High modularity: low current contacts (signal - 3-5 amps, depending on the application)
                             High current contacts (20-40 amps, depending on the application)
                             COAX contacts, possibility of straight or angled contact for a variety of COAX cables
                             1 row and up to 3 rows of contacts
                             From 4 to 120 contacts

• Spacing between contacts 2 mm
• Configurations: board-to-board, board-to-wire, wire-to-wire
• Space saving up to 60%, weight saving up to 50% compared to other rectangular micro connectors with the same functions
• Temperature range: 60°C- Committee + 260°C
• High resistance to vibrations and shocks
• Immunity with PPS material: no moisture absorption, no oxygen, radiation resistance and also solvent resistance (known PPS properties for space applications)

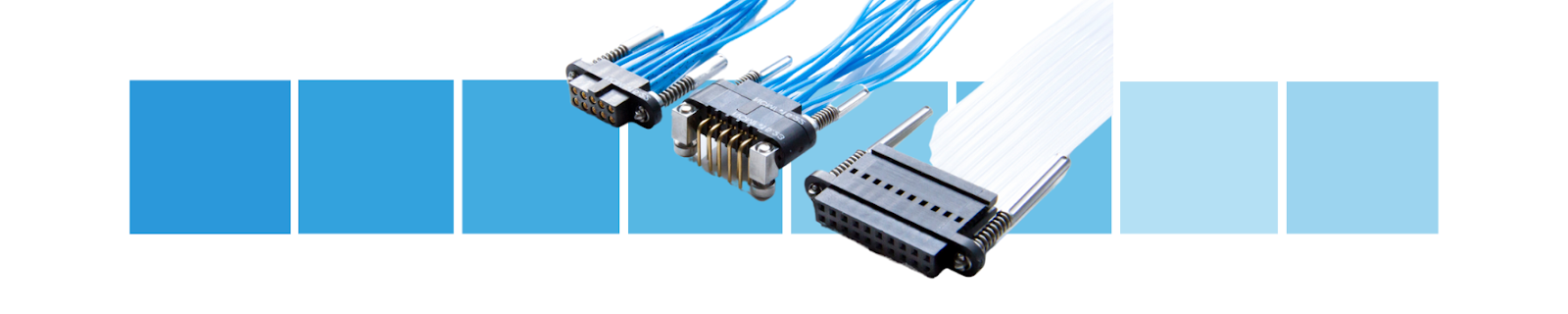

CMM family

Rectangular plastic connectors, designed to meet the electrical and mechanical performance of the MIL-DTL-55302F standard and beyond the performance level required by this standard.

The CMM family contains five series:

CMM-100 series: This series is intended for signal contacts only, and consists of one row of contacts and contains from 2 to 25 contacts. In this series, the connection between a male connector and a female connector is made using a spring catch (Latch)

CMM-200 series: This series is intended for signal contacts only, and consists of two rows of contacts and contains from 4 to 50 contacts. In this series, the connection between a male connector and a female connector is made using a spring catch (Latch)

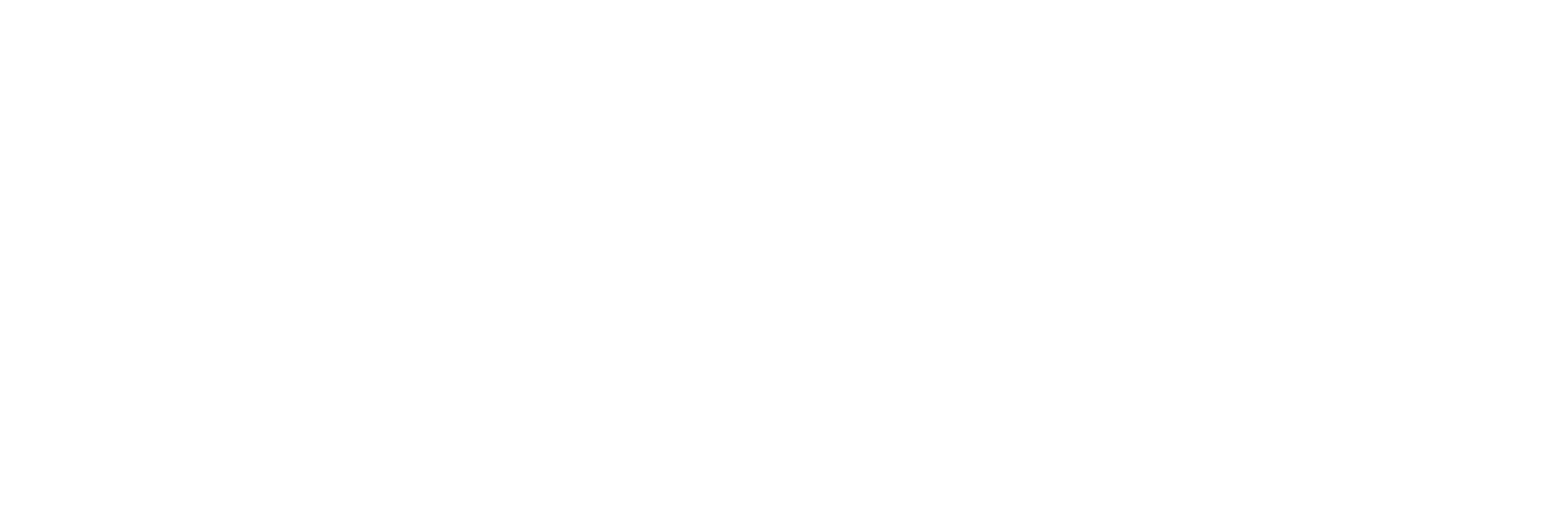

CMM-220 series: In this series you can combine three types of contacts: coax (HF), signal (LF) and high current (HP). The series contains two rows of signal contacts. If we decide to combine coax contacts, or HP, the contact will take the place of 4 signal contacts. In this series, the connection between a male connector and a female connector is made using screws.

Flexible wiring, FFC flat cable, type- Crimpflex.

CMM-320 series: Three types of contacts can be combined in this series: coax (up to 6 GHz), signal (3-5 amps per contact) and high current (20-40 amps per contact).

In a combined connector of different types of contacts, up to 40 signal contacts and 20 HP or HF contacts can be characterized.

The series contains three rows of signal contacts. If we decide to combine coax contacts (HF), or HP, the contact will take the place of 4 signal contacts. In this series, the connection between a male connector and a female connector is made using screws.

CMM-340 series: This series is similar in its combinations to the CMM-320 series, except that the coax (HF) contacts are up to 1.5GHz and high current up to 10 amps, and can be characterized from 4 HP/hf contacts to 64 contacts. In this series, the connection between a male connector and a female connector is made using screws.

To build a SKU, get a drawing and a model, click Here (one-time registration to the website is required)
